clutch004

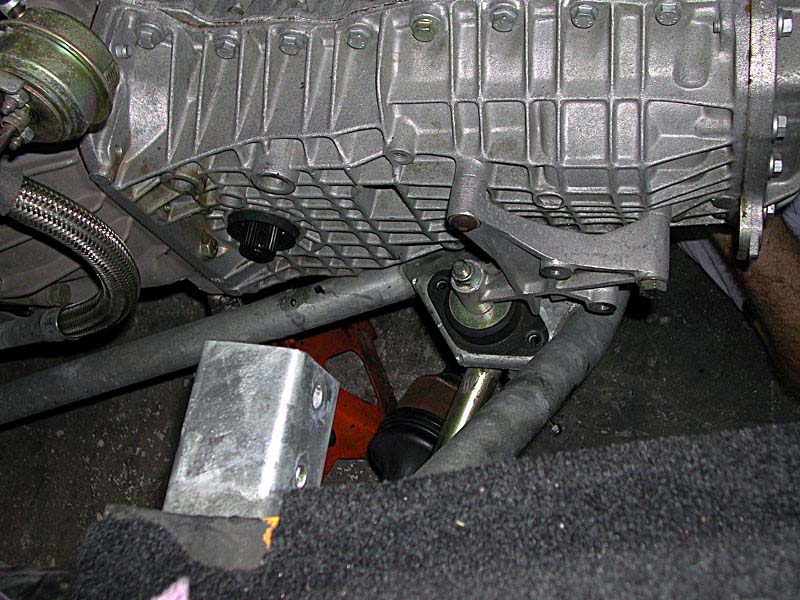

Here the halfshafts have been disconnected from the gearbox. The entire drivetrain assembly is supported by four mounts: two on the engine and two on the gearbox. The transmission mounts (one per side) can only be removed once the engine is supported from underneath.
